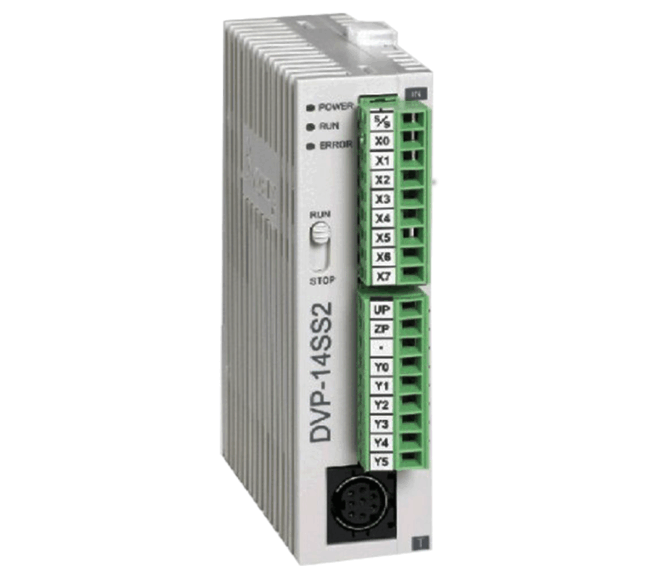

The DVP-SS2 Series is Delta Electronics’ second generation of slimline industrial PLCs. The DVP-14SS211T features high speed counters and pulse outputs, a flexible serial port, real-time monitoring and an expansion bus that allows matching modules to be mounted on the right side of the PLC without external wiring.
The DVP-14SS211T supports PID loops with automatic tuning for process control applications. The transistor outputs allow high speed pulse generation for servo or stepper motor motion control applications.
| Power: | 20.4 to 28.8 VDC |
|---|---|
| Digital Inputs: | 8 inputs, 24 VDC sink or source¹ |
| Digital Outputs: | 6 open collector type transistor outputs |
| Output Rating: | 30 VDC, 500 mA each output |
| Communication Port: | RS-232 and RS-485, Modbus ASCII/RTU master or slave |
| Program Capacity: | 8k steps |
| IO Points: | Up to 238 via expansion modules |
| Software Up/Down Counters: | Any input, up to 10 kHz on a single input |
| Software Quadrature Inputs: | 2 – X4/X5 (5 kHz) and X6/X7 (5 kHz) |
| Hardware Up/Down Counters: | 2 – X0 and X2, both 20 kHz |
| Hardware Quadrature Inputs: | 2 – X0/X1 and X2/X3, both 10 kHz |
| Hardware Pulse/PWM Outputs: | 4 – Y0 to Y3 each up to 10 kHz |
