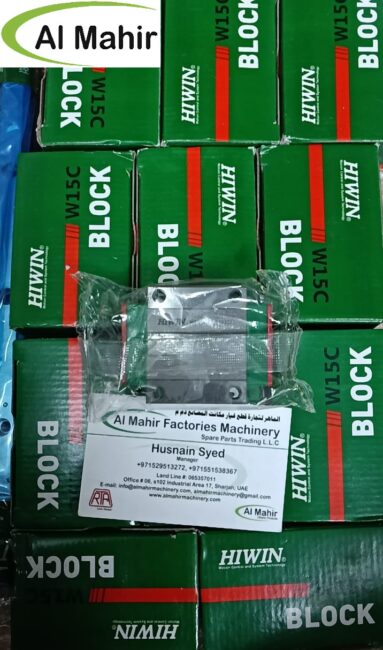

HIWIN W15C Linear Guide Block (WE Series, Wide Rail)

The HIWIN W15C (WEH15C / WEW15C) is a compact four-row wide rail linear
guideway block designed for high load capacity and excellent moment
resistance. With a low center of gravity and smooth motion performance,
it is ideal for CNC machinery and precision automation systems.

Performance & Load Ratings

• Dynamic Load Rating: 9.02 kN
• Static Load Rating: 13.83 kN
• Static Moment (MR): 0.11 kN·m
• Static Moment (MP / MY): 0.07 kN·m
• Parallelism Tolerance: 25 µm
• Friction Coefficient: ~1/50 of traditional slides

Mechanical Specifications

• Block Type: Square (WEH) / Flange (WEW)
• Height: 24 mm
• Width: 34 mm (Square) / 52 mm (Flange)
• Length: 71 mm
• Mounting Bolt: M4
• Rail Pitch: 60 mm
• Weight: ~0.17 kg

Features & Construction

• Design: 4-row recirculating ball system with 45° contact angle
• Material: High-grade alloy steel (GCr15) or stainless variants
• Self-Aligning: Absorbs installation errors for smooth motion
• Dust Protection: End seals and bottom seals included
• Lubrication: Optimized grease flow for long service life
