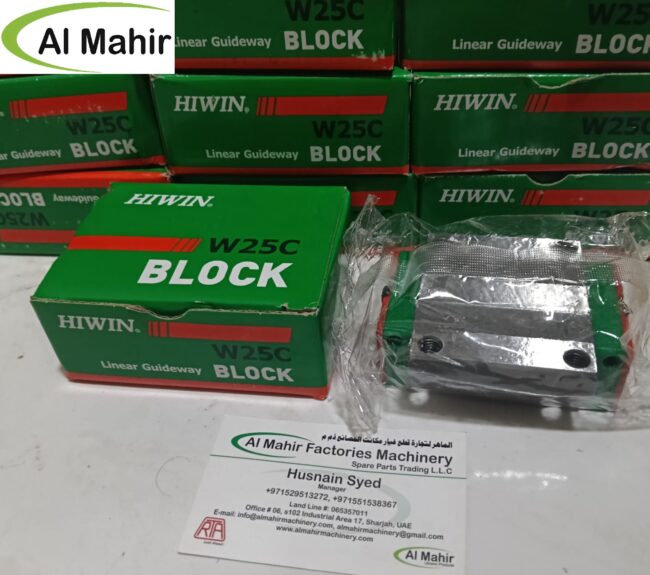

HIWIN W25C Linear Guide Block – WE Series

The HIWIN W25C is a four-row, wide-rail linear guideway block from the WE Series,
designed for high torsional resistance and compact installations. It is ideal for
applications where space is limited or where a single rail must تحمل significant
moment loads, such as CNC routers and automated assembly systems.

Technical Specifications

• Series: WE Series (Wide Rail)
• Model Size: 25 mm
• Block Type: W (Flange Type)
• Load Type: C (Heavy Load)
• Overall Length: 92.8 mm
• Mounting Bolt: M6
• Maximum Rail Length: 4000 mm
• Oil Refilling Rate: 0.3 cm³/hr

Performance Characteristics

• High Torsional Resistance:
  Up to 3.5× higher than standard series (e.g., HG series), ideal for single-rail setups
• Equal Load Ratings:
  Uniform load capacity in radial, reverse radial, and lateral directions
• Self-Aligning Design:
  Circular-arc groove absorbs installation errors for smooth motion
• Dust Protection:
  Includes end seals and bottom seals, with optional reinforced caps (RC) or scrapers
