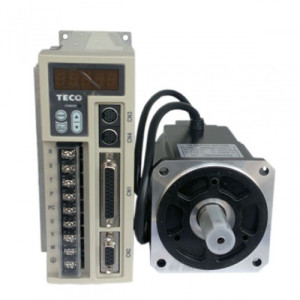

AC Servo System JSDE+ Series
Series-Standard AC Servo Drive
JSDE+ is a Standard AC Servo driver which has cost effective and reliable for general purpose applications.
* Collocation with TSTA series digital type drive, model is complete
* Low noise, low vibration.
* High delicate appearance, easy to install.
* Low rotor inertia design to enhances reliability of the motor in high speed and high frequency location.
* Quality assurance, accord with the ISO9001 standards.
Specifications:
| Servo motor for JSDEP-_ _ _ | 15A | 20A | |
| Basic Specifications | Servo motor capacity[KW] Max. | 0.4 | 0.75 |
| Continuous outputcurrent [A rms] | 2.5 | 4.4 | |
| Max. output current[A rms] | 7.5 | 13.2 | |
| Input Power Supply | Single / Three Phase AC 170 ~ 253V | ||
| Main Circuit R/S/T | 50 / 60Hz ±5% | ||
| Cooling System | Natural Air Cooling | Fan Cooling | |
| Control of Main Circuit | Three-phase full-wave rectification IGBT- PWM Control | ||
| dn-08 DisplayCn030 Setting | Drive Model | Motor Model | Motor Standards | EncoderSpecification | |
| Watt(KW) | Speed(rpm) | ||||
| H1111 | JSDEP-15A | JSMA-PSC01AB | 0.1 | 3000 | 2500 |
| H1121 | JSMA-PLC03AB | 0.3 | 3000 | 2500 | |
| H1122 | JSMA-PLC03AH | 8192 | |||
| H1141 | JSMA-SC04AB | 0.4(Rated
3.5A) |
3000 | 2500 | |
| H1142 | JSMA-SC04AH | 8192 | |||
| H1151 | JSMA-PSC04AB | 0.4(Rated
2.5A) |
3000 | 2500 | |
| H1152 | JSMA-PSC04AH | 8192 | |||
| H1211 | JSDEP-20A | JSMA-PLC08AB | 0.75 | 3000 | 2500 |
| H1212 | JSMA-PLC08AH | 8192 | |||
| H1231 | JSMA-PSC08AB | 2500 | |||
| H1232 | JSMA-PSC08AH | 8192 | |||
| H1241 | JSMA-PMA05AB | 0.55 | 1000 | 2500 | |
| H1242 | JSMA-PMA05AH | 8192 | |||
| H1251 | JSMA-PMH05AB | 1500 | 2500 | ||
| H1252 | JSMA-PMH05AH | 8192 | |||
Applications:
printing machines, coil wiring machines, injection molding machines, weaving, drilling, CNC type machines and machine tools etc.
Other hot items of this TECO Standard AC Servo Drive JSDE+ Series for above applications:
| JSDEP-15A | TECO Standard AC Servo Drive JSDE+ Series JSDEP-15A 400W 1/3 phase 170V~253V 50/60Hz |
| JSDEP-20A | TECO Standard AC Servo Drive JSDE+ Series JSDEP-20A 750W 1/3 phase 170V~253V 50/60Hz |
