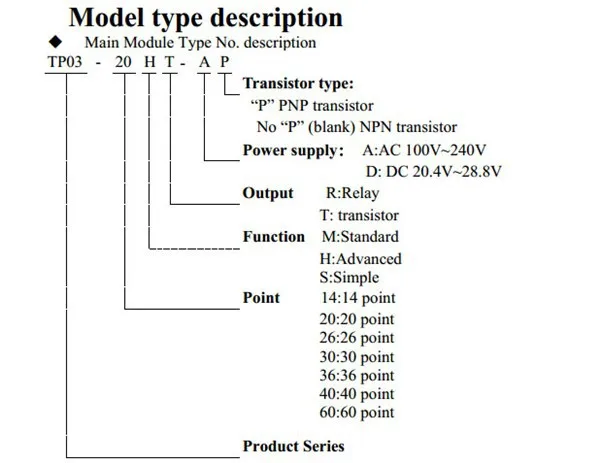

model:TP03-40HR-A plc



TP03 is the latest generation of PLC developed by TECO. The high-speed and high-quality programmable logic controller has following features:

  •  High speed of executive time. Basic instructions: 0.31us / step (ANDB), 0.45us/step (LD)
  •  Large memory capacity:Program memory capacity: 4~8~16k steps. The product has integrated basic and application instructions, such as operation instructions, ADD/SUB/MUL/DIV…etc. trigonometry instructions as SIN /COS /TAN…, matrix input, and other instructions as matrix input, 7-seg output, and PID.
  •  Flexible expansion ability
    Basic units: 14/20/26/30/36/40/60 point types, max can expand to 256 digital points. 60/10 (12 bits) analog input /output
  •  3 communication ports, and with 3 functions (please refer to Chapter 3: communication port for detailed information) are available for Basic unit. Using any one of them can establish a network.. PC/PDA port is also for download/upload the program to/from TP03.
    Computer link: ONE computer can control as many as 255 TP03s.Data link: When a TP03 is set as master, it can control other 15 TP03s. Each PLC can receive max (64 bits+8 words) ×15 data.
    Remote I/O: TP03 is set as master; it can control as much as 4 other TP03s. Each slaver has MAX input 36 points; output 24 points:Compliant with Modbus: Modbus protocol has embeded in TP03. It’s easy to comminucationwith invert or HMI.
  •  Built-in RTC, PWM, RUN/STOP switch, two VR (potentiometers), flash memory, and theproduct is available for expansion modules, A/D, D/A module and etc.
  •  Built-in high speed 100K pulse output which can control servo controller.
  •  High speed counter:With max speed 100K single phase, the counter has the function of two/single phase high speedand interruption input which enable precisely controlling the pulse input signal from encoder.
  •  TP03 series products have the same height: 90mm.
  •  TP03 is very easy to operate for those who have used Mitsubishi FX series.
  •  Profibus-DP, DeviceNet, EtherNet (TCP/IP) communication module is optional
  •  Easy to maintain and installation, as terminal block is pluggable (only 40/60 points type), Dinrail installation
  •  PDA edits software (programming language: instruction list, IL)
  •  TP02 expansion modules are available for TP03
  •  The three programming languages, LD (Ladder Diagram, IL(Instruction List) and SFC(Sequential Function Chart) are all available for TP03.
  •  The system program can be updated directly by the controller

           Download TP03 PLC user manual
