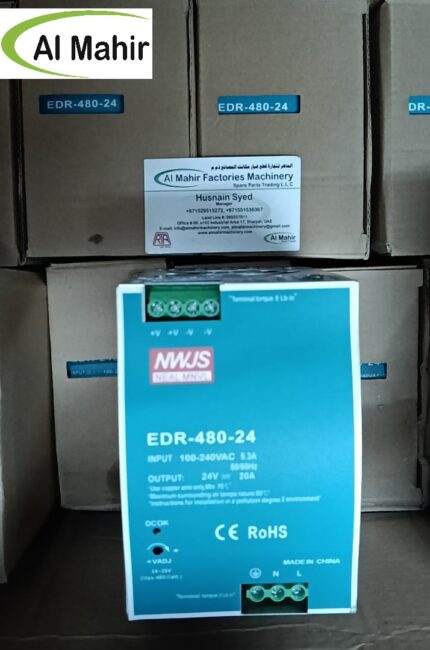

NWJS EDR-480-24 DIN Rail Power Supply (24V, 20A, 480W)

The NWJS EDR-480-24 is a high-capacity industrial switching power supply
designed for DIN rail mounting. With a powerful 480W output, it provides
stable 24V DC power for demanding automation systems, control panels,
and industrial equipment.

Output Specifications

• Output Voltage: 24V DC
• Output Current: 20A
• Power: 480W
• Adjustable Range: 24V – 28V
• Ripple & Noise: 150mVp-p

Input Specifications

• Input Voltage: 90 – 264VAC / 127 – 370VDC
• Frequency: 47 – 63 Hz
• Efficiency: ~88.5%
• Inrush Current: 20A / 40A

Protection Features

• Overload: Auto recovery
• Overvoltage: Shutdown protection
• Over Temperature: Auto recovery
• Short Circuit: Protected

Mechanical & Environment

• Dimensions: 85.5 x 125 x 128 mm
• Weight: ~1.3 kg
• Mounting: DIN Rail
• Cooling: Fanless (air convection)
• Temperature: -20°C to +70°C
• Indicator: DC OK LED
