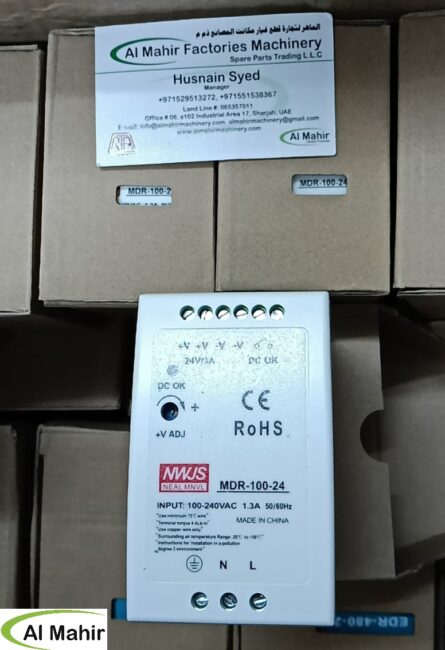

NWJS MDR-100-24 DIN Rail Power Supply (24V, 4A, 100W)

The NWJS MDR-100-24 is a compact, slim-profile switching power supply
designed for DIN rail mounting. With a lightweight plastic housing and
reliable 24V DC output, it is ideal for small control panels and
industrial automation systems.

Output Specifications

• Output Voltage: 24V DC
• Output Current: 4A
• Power: 96W (~100W)
• Adjustable Range: 24V – 30V
• Ripple & Noise: 150mVp-p

Input Specifications

• Input Voltage: 85 – 264VAC / 120 – 370VDC
• Frequency: 47 – 63 Hz
• Efficiency: ~86%
• Inrush Current: 30A / 60A

Protection Features

• Overload: Auto recovery
• Overvoltage: Shutdown protection
• Over Temperature: Auto recovery
• Short Circuit: Protected

Mechanical & Environment

• Dimensions: 55 x 90 x 100 mm
• Weight: ~0.42 kg
• Mounting: DIN Rail
• Cooling: Fanless
• Housing: Plastic case
• Indicator: DC OK LED
