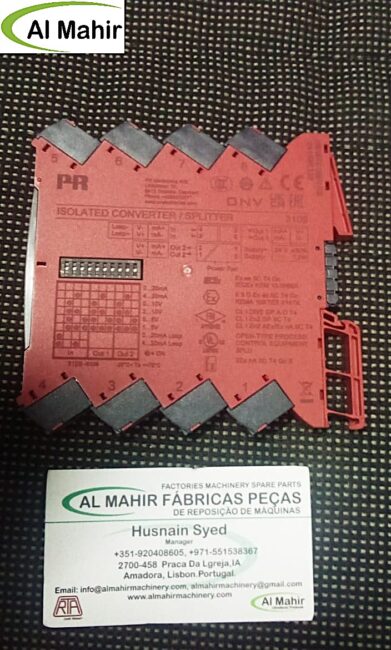

PR Electronics 3109 Signal Converter & Splitter (Isolated, 1-in / 2-out)

The PR Electronics 3109 is a slimline isolated signal converter and splitter,
designed for galvanic isolation and duplication of analog signals in industrial
automation systems. With a compact 6.1 mm housing, it is ideal for high-density
DIN rail installations in PLC and SCADA environments.

Electrical & Performance Specifications

• Input Types:
  Current: 0–20 mA / 4–20 mA (up to 23 mA)
  Voltage: 0–5 V, 1–5 V, 0–10 V, 2–10 V
• Output Types:
  Dual outputs (current or voltage configurable)
• 2-Wire Supply: >17 V / 20 mA
• Supply Voltage: 16.8 – 31.2 VDC
• Isolation: 2.5 kVAC (4-port isolation)
• Accuracy: < 0.05%
• Response Time: < 7 ms
• Signal-to-Noise Ratio: > 60 dB
• Configuration: DIP switch programmable

Mechanical & Physical Features

• Width: 6.1 mm (ultra slim)
• Dimensions: 113 x 6.1 x 115 mm
• Weight: ~70 g
• Mounting: DIN rail (35 mm)
• Terminals: Screw type
• Indicator: Front LED status indicator
