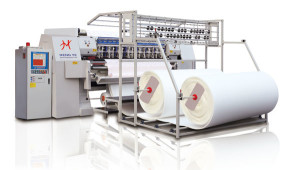

Model: HY-W-JH

Parameter(Unit mm)：

Dimension(L×W×H) ：4800×1600×2000

Quilting width：2450

Space between needle rows: 50.8,76.2,127(5”)

Space between needle rows: 76.2,76.2,152.4(6”)

Space between needles：25.4

X-axis movement displacement：410

Thickness of quilting≤80(for all patterns)

Stitch length：3-8

Speed of operation：60~230(m/hour)

Model of needle：24/180 23/160 22/140 21/130

Quilting speed：200~900(RPM)

Total power required：7KW

Voltage ：380V/50HZ 220V/60HZ

Gross weight：4500kg

Detail Information:

• Needle bar and press plate are controlled by a double- swinging device without cam avoiding lubrication and dirtying of material

• Multi-span and independent patterns(360°and 180°patterns are available)

• Automatic stop motion control in case the top thread or the bottom thread breaks，automatic needle-lifting and CNC speed adjustment

• CE Certificate

• No need to adjust the press plate’ s position when the thickness of quilting material varies

• Outstanding features such as high rigidity, high running speed, low vibration and noise

• CNC precision control system

• Easy preparation of CAD drawings extremely precise

• Strong functions of pattern-combining and multi-span quilting to enable you to quilt different patterns in each row in the mattresses of different sizes

• Fault detection function for ease of determining the running state of the machine at any given time.
